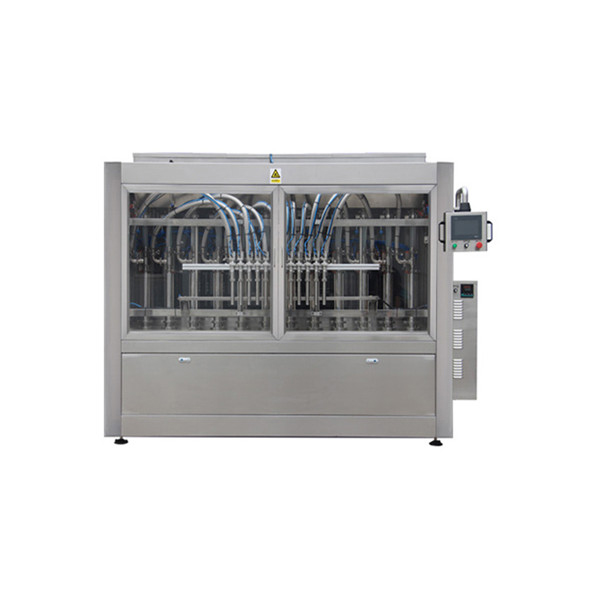

Lubrifikatzaile automatikoa motorraren olioa betetzeko linea

This type machine is used for 4kg -30 kg liquid filling . It can finish a series of operations automatically, such as bottle inlet, weight filling, and bottle outlet. Especially for SL, edible oil lubrication. it is a nice choice for foodstuff, pharmacy, cosmetic and chemical industries.

1. This machine adopts PLC, touch screen control panel, convenient to adjust.

2. Each filling head has the weigh and feedback system. Each filling head can be regulated.

3. Photoelectric sensor, approximate switch and other electric elements are the international famous brand. No container no filling. The main host can trigger the alarm if there is any container blocked.

4. Submerged filling makes it possible to reduce form. It is suitable for various kinds of filling products.

5. The whole machine meets GMP standard. It is easy to disassemble clean and maintain, and the parts which contact with the filling products are made of high quality stainless steel. The whole machine is safe, environmental, sanitary, adapts to various kinds of working places.

Lubrifikatzaile automatikoa motorraren olioa betetzeko linea

MotaSuitable bottlesaforoaMakinaren neurriaPowerEnergia horniduraPrecise
2 Headslength:160-3600mmwidth:100-300mm
height:250-500mm
neck diameter:≥Φ40mm
(can be customized)
30kg:200BPH2000*1700*2300mm2kwAC220/380V

50/60Hz

≤ ±% 0,5
4 Heads30kg:350BPH2500*1700*2300mm2kw
6 Buruak30kg:520BPH3500*1700*2300mm2kw
8 Heads30kg:600BPH4500*1700*2300mm2.5kw

NO.1

With pressure protection system, if the bottle is misaligned, the filling nozzle will rise after falling to a certain height

NO.2

High quality filling valve, high filling accuracy, quick action

Hodien aukera ezberdinak:

Bezeroak aukeratutako aukeraren arabera, tutu material ezberdinekin hornituta egon daiteke, bezeroak asetzeko
variety of different liquid safety filling.

Automatic Capping Machine:

The machine adopts linear bottle feeding, PLC program control, double cylinder bottle positioning, can clear up and drop the cap automatically. Single-head machine in the double action lifting cylinder to grasp the cover firstly, then screw cap. The screw cap adopts the air expansion type catch cap, and is equipped with clutch device, the screw cap will not damage the bottle cap, the machine is suitable for the screw cap of the barrel with large diameter.

Automatic 6 Wheels Linear Trigger Capping Machine 3

Abiadura≤1200BPH
dimension2000mm*1300mm*2100mm
pisu750kg
Aire-iturria0.6-0.8Mpa
Power2.5kw AC220/380v;50/60 HZ

NO.1

Servo motor is used to control the torque of the rotary capping head, It won't damage the bottle and the caps.

The action of grasping the cap is completed by the air cylinder.

NO.2

According to the special requirements of customers, the cap lifting machine can be replaced with a cap unscrambler and conveyor belt. Much more easier to adjust when change the caps and bottles.

NO.3

Belt type conveyor for the caps,the speed and stability of cap conveyor are increased, and won't occurs caps missing

NO.4

On the belt conveyor, the no-aluminum foil cap remove device can be installed to remove the cover without aluminum foil.

Automatic Double-side Labeling Machine:

This machine id widely suitable for foodstuff, cosmetic, pharmaceutical, pesticide and other industries. It is single
and double side labeling for flat, square and round bottle which volume below 1L. Automatic controlled by computer
(PLC) easy operating.

Automatic Double Sided Labeling Machine

Machine introduction:

1. Adopt mature PLC control technology, make the machine stable and high-speed. Can be suitable or square /oval flat bottles at the same time.

2. Adopt touch screen control system, simple, practical and efficient operation.

NO.1

Adopt high quality wheel to leave some space between the bottles, so as to ensure that the labels will not be missed. The rotary speed of the sponge wheel can be adjusted to adjust space between the two bottles.

NO.2

The parts of the machine that store labels and collect label paper are designed to be adjustable to accommodate a wide variety of labels.

NO.3

Adopt photoelectric equipment imported from Germany, and high quality servo motor, the labeling accuracy is greatly improved.

Service:

1. Instalazioa, arazketa
After equipment reached the workshop of cust
omer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.

2. Prestakuntza
Gure enpresak teknologiari buruzko trebakuntza eskaintzen dio bezeroari. Prestakuntzaren edukia ekipamenduen egitura eta mantentzea, kontrolatzea eta ekipoen funtzionamendua da. Espezializatutako teknikariak entrenamendu eskema gidatu eta ezarriko du. Prestakuntza egin ondoren, erosle teknikariak eragiketa eta mantentzea menperatu, prozesua egokitu eta hutsegite desberdinak tratatu ditzake.

3. Kalitate bermea
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract.

4. Salmenten ondoren
Egiaztatu ondoren, 12 hilabete eskaintzen ditugu kalitate bermea, doako piezak janzten dituzten eskaintza eta beste piezak eskaintzen ditugu, prezio txikienean. Kalitatea bermatzeko, erosleen teknikariak ekipoak funtzionatu eta mantendu beharko luke saltzailearen eskaeraren arabera, akats batzuk arazteko. Arazoak konpondu ezin izan badituzu, telefonoz gidatuko zaitugu; Arazoak konpondu ezin badira, teknikaria zure lantegira antolatuko dugu arazoak konpontzeko. Teknikoaren antolamenduaren kostua teknikariaren kostua tratatzeko metodoa ikus dezakezu.

Kalitate bermea lortu ondoren, laguntza teknologikoa eskaintzen dugu eta salmenta osteko zerbitzua eskaintzen dugu. Eska ezazu janzteko piezak eta gainerako ordezkoak prezio egokian; kalitate bermea lortu ondoren, erosleen teknikariak ekipamendua funtzionatu eta mantendu beharko du saltzailearen eskaeraren arabera, akats batzuk arazteko. Arazoak konpondu ezin izan badituzu, telefonoz gidatuko zaitugu; Arazoak konpondu ezin badira, teknikaria zure lantegira antolatuko dugu arazoak konpontzeko.
